Product Summary

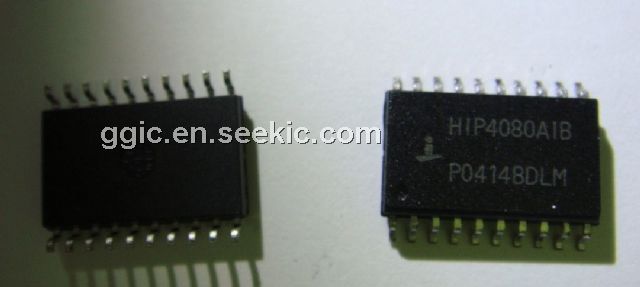

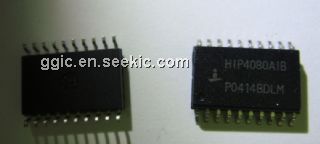

The HIP4080A is a high frequency, medium voltage Full
Bridge N-Channel FET driver IC, available in 20 lead plastic
SOIC and DIP packages. The HIP4080A includes an input
comparator, used to facilitate the “hysteresis” and PWM
modes of operation. Its HEN (high enable) lead can force
current to freewheel in the bottom two external power
MOSFETs, maintaining the upper power MOSFETs off.
Since it can switch at frequencies up to 1MHz, the HIP4080A
is well suited for driving Voice Coil Motors, switching power
amplifiers and power supplies.
HIP4080A can also drive medium voltage brush motors, and
two HIP4080As can be used to drive high performance
stepper motors, since the short minimum “on-time” can
provide fine micro-stepping capability.
Short propagation delays of approximately 55ns maximize
control loop crossover frequencies and dead-times which
can be adjusted to near zero to minimize distortion, resulting
in precise control of the driven load.
The similar HIP4081A IC allows independent control of all 4
FETs in a Full Bridge configuration.
The Application Note for the HIP4080A is AN9404.

Parametrics

Jeff Jia
Sales Manager
GUI GUANG INTERNATIONAL TRADE LIMITED
www.ggichk.com
E-mail:jeff@ggichk.com
Tel:0086-15816677110
Fax:00852-35902333

Features

? Drives N-Channel FET Full Bridge Including High Side
Chop Capability
? Bootstrap Supply Max Voltage to 95VDC
? Drives 1000pF Load at 1MHz in Free Air at +50°C with
Rise and Fall Times of Typically 10ns
? User-Programmable Dead Time
? Charge-Pump and Bootstrap Maintain Upper Bias
Supplies
? DIS (Disable) Pin Pulls Gates Low
? Input Logic Thresholds Compatible with 5V to 15V Logic
Levels
? Very Low Power Consumption
? Undervoltage Protection
? Pb-Free Available as an Option

Diagrams

? Medium/Large Voice Coil Motors
? Full Bridge Power Supplies
? Switching Power Amplifiers
? High Performance Motor Controls
? Noise Cancellation Systems
? Battery Powered Vehicles
? Peripherals
? U.P.S.

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
HIP4080AIB
HIP4080AIB

Intersil

Power Driver ICs 60-80 VDC HI FREQ H- BRDG DRIVER

Data Sheet

0-590: $2.47
HIP4080AIBT
HIP4080AIBT

Intersil

Power Driver ICs HIP4080AIB

Data Sheet

0-494: $3.91
494-1000: $2.41
HIP4080AIBZ
HIP4080AIBZ

Intersil

Power Driver ICs VERSION OF HIP4080AI B

Data Sheet

0-1: $2.78
1-25: $2.34
25-100: $1.94
100-250: $1.74
HIP4080AIBZT
HIP4080AIBZT

Intersil

Power Driver ICs VERSION OF HIP4080AI BT

Data Sheet

0-1: $3.43
1-25: $2.78
25-100: $2.36
100-1000: $1.53
