Product Summary

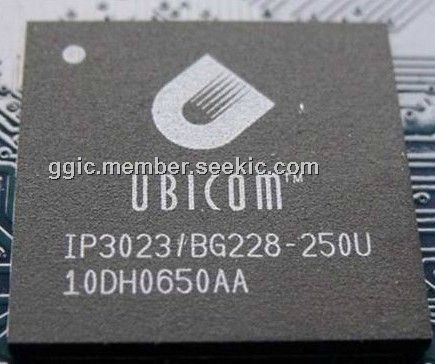

The IP3023/BG228-250U is a wireless network processor. It is a revolutionary new platform from Ubicom designed to provide highly integrated solutions for applications at the edge of internet connectivity, including 802.11a/b/g access points, routers, hot spots, bridges, gateways, and a wide variety of embedded networked client solutions. The IP3023/BG228-250U is optimized for efficient network processing in embedded solutions. Its development has lead to the definition of a new microprocessor architecture: Multithreaded Architecture for Software I/O (MASI).

Features

IP3023/BG228-250U featurs: (1)250 MIPS, 32-bit MASI CPU; (2)IP3023 is optimized for wireless networking; (3)8-way simultaneous multithreading; (4)Deterministic execution on all threads; (5)Zero overhead full context switching; (6)Programmable MIPS per thread; (7)Optimized ISA for packet processing; (8)Memory to memory architecture, powerful addressing modes; (9)Small fast instruction set, strong bit manipulation; (10)Reduced code size vs RISC CPUs; (11)On-chip Program and Data memory; (12)Eliminates cache miss penalties; (13)256KB (64k × 32) of Program SRAM; (14)64kB (16k × 32) of Data SRAM; (15)Highly configurable I/O support; (16)Many Combinations of Software I/O: Utopia, PCMCIA, IDE/ATAPI; (17)PCM Highway, UART, SPI, I2C; (18)32-bit 802.11a/g radios interface; (19)Two SerDes for fast serial I/O: 10Base-T (MAC/PHY), USB, GPSI; (20)SPI, UART, 2-wire serial, BlueRF; (21)Up to 4 MII ports for 10/100 PHY; (22)Additional key hardware; (23)True random number generator for software-implemented encryption/security (32-bit seed); (24)Fixed-point MAC (16x16+48-bit, 250 MMACs) for voice/audio codecs, other signal processing tasks; (25)Independent I/O and core CPU clocking; (26)Separate Phase-Locked Loops (PLLs); (27)Programmable multipliers & dividers; (29)Single low cost crystal (10MHz).

Diagrams

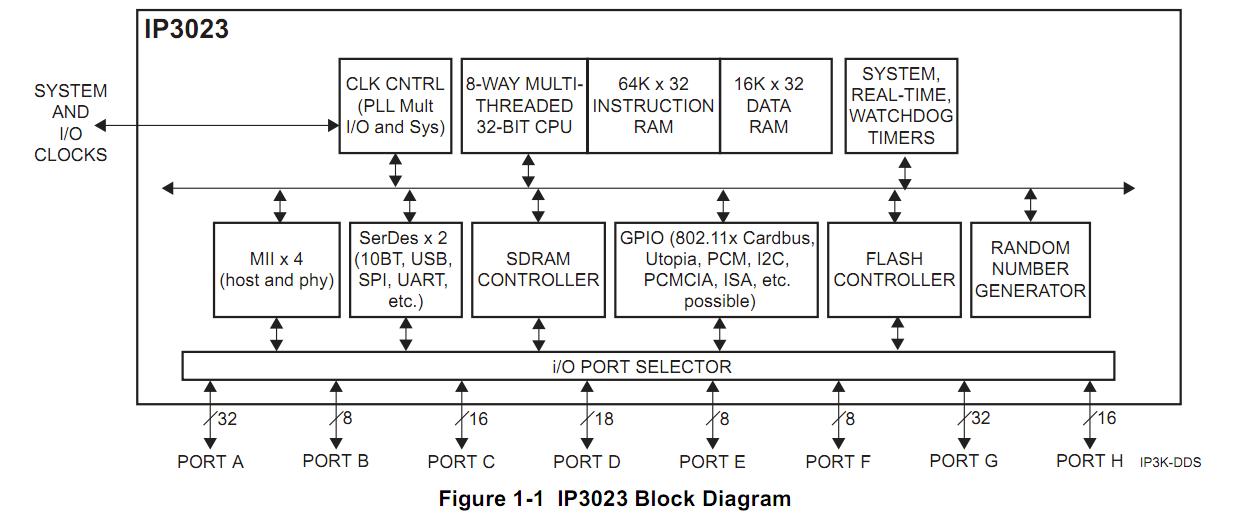

IP3023/BG228-250U block diagram
