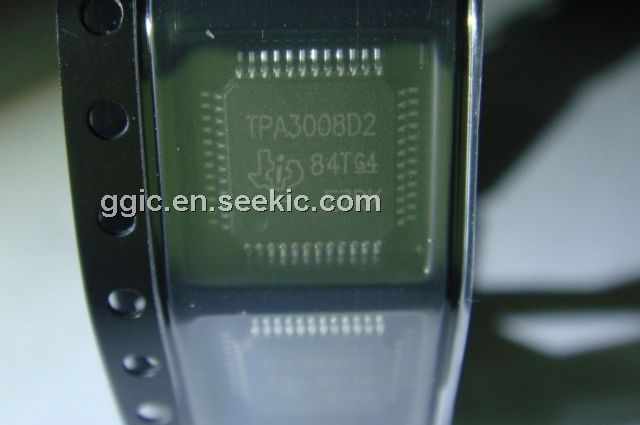

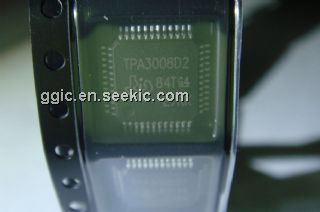

Product Summary

The TPA3008D2 is a 10-W (per channel) efficient
class-D audio amplifier for driving bridged-tied stereo speakers. The TPA3008D2 can drive stereo speakers as low as 8 Ω. The high efficiency of the TPA3008D2 eliminates the need for external heatsinks when playing music
The gain of the amplifier is controlled by two gain select pins. The gain selections are 15.3, 21.2, 27.2 and 31.8 dB.
The outputs are fully protected against shorts to GND, VCC, and output-to-output shorts. A fault terminal allows short-circuit fault reporting and automatic recovery. Thermal protection ensures that the maximum junction temperature is not exceeded.


Parametrics

Jeff Jia

Sales Manager
GUI GUANG INTERNATIONAL TRADE LIMITED
www.ggichk.com
E-mail:jeff@ggichk.com
Tel:0086-15816677110

Fax:00852-35902333

Features

10-W/Channel Into an 16-Ω Load From a 17-V Supply
Up to 92% Efficient, Class-D Operation Eliminates Need For Heatsinks
8.5-V to 18-V Single-Supply Operation
Four Selectable, Fixed Gain Settings
Differential Inputs Minimizes Common-Mode Noise
Space-Saving, Thermally Enhanced PowerPAD? Packaging
Thermal and Short-Circuit Protection With Auto Recovery Option

Pinout Similar to TPA3000D Family

-40°C to 85°C


Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TPA3008D2
TPA3008D2

Other


Data Sheet

Negotiable
TPA3008D2EVM
TPA3008D2EVM

Texas Instruments

Audio IC Development Tools TPA3008D2 Eval Mod

Data Sheet

0-1: $33.48
TPA3008D2PHP
TPA3008D2PHP

Texas Instruments

Audio Amplifiers 10-W Stereo Class-D

Data Sheet

0-1: $4.74
1-25: $4.39
25-100: $4.03
100-250: $3.67
TPA3008D2PHPRG4
TPA3008D2PHPRG4

Texas Instruments

Audio Amplifiers 10-W Stereo Class-D

Data Sheet

0-730: $2.77
730-1000: $2.67
1000-2000: $2.57
TPA3008D2PHPG4
TPA3008D2PHPG4

Texas Instruments

Audio Amplifiers 10-W Stereo Class-D

Data Sheet

0-147: $4.03
147-250: $3.67
250-500: $3.27
500-1000: $3.15
TPA3008D2PHPR
TPA3008D2PHPR

Texas Instruments

Audio Amplifiers 10-W Stereo Class-D

Data Sheet

0-730: $2.77
730-1000: $2.67
1000-2000: $2.57
