Product Summary
Description

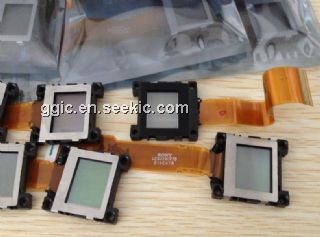

The LCX029CRT is a 2.3cm diagonal active matrix
TFT-LCD panel addressed by polycrystalline silicon
super thin film transistors with a built-in peripheral
driving circuit. Use of three LCX029CRT panels
provides a full-color representation. The striped
arrangement suitable for data projectors is capable
of displaying fine text and vertical lines.
The adoption of DMS?1
structure and high light
resistance structure realize a high luminance screen.
And cross talk free circuit and ghost free circuit
contribute to high picture quality.
This panel has a polysilicon TFT high-speed scanner
and built-in function to display images up/down and/or
right/left inverse. The built-in 5V interface circuit leads
to lower voltage of timing and control signals.
The panel contains an active area variable circuit
which supports S-XGA 5:4 and PC-98 8:5 data signals
by changing the active area according to the type of
input signal.
Parametrics
Jeff Jia
Sales Manager
GUI GUANG INTERNATIONAL TRADE LIMITED
www.ggichk.com
E-mail：jeff@ggichk.com
Tel:0086-15816677110
Fax:00852-35902333
Features
Features
? Number of active dots: 786,432 (0.9 Type, 2.3cm in diagonal)
? XGA, SVGA, VGA, NTSC, PAL display
? SXGA display with simple display
? High optical transmittance: 26% (typ.)
? Built-in cross talk free circuit and ghost free circuit
? High contrast ratio with normally white mode: 400 (typ.)
? Built-in H and V drivers (built-in input level conversion circuit, 5V driving possible)
? Up/down and/or right/left inverse display function
? Antidust glass package
? Right twist liquid crystal
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 LCX029CRT |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
LCX005BK |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
LCX005BKB |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
LCX007BK |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
LCX007BKA |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
LCX007BNB |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
LCX007CL |
Other |
|
Data Sheet |
Negotiable |
|
||||
