Product Summary
The LC72711LW-E is a mobile FM multiplex broadcast DARC receiver. This IC includes an onchip bandpass filter for extracting the DARC signal from the FM baseband signal. Furthermore, since this IC supports all of the IT-R recommended FM multiplex frame structures (methods A, B, and C), it is optimal for worldwide market radios that provide FM multiplex reception.
Parametrics
LC72711LW-E absolute maximum ratings: (1)maximum supply voltage: -0.3 to 7V; (2)output voltage: -0.3 to 7V; (3)output current: 0 to 4A; (4)allowable output current: 20mA; (5)operating temperature: -40 to 85℃; (6)storage temperature: -55 to 125℃.
Features
LC72711LW-E features: (1)Adjustment-free 76 kHz SCF bandpass filter; (2)Supports all FM multiplex frame structures (methods A, B, and C) under CPU control; (3)MSK delay detection system based on a 1T delay; (4)Error correction function based on a 2T delay (in the MSK detection stage); (5)Digital PLL based clock regeneration function.

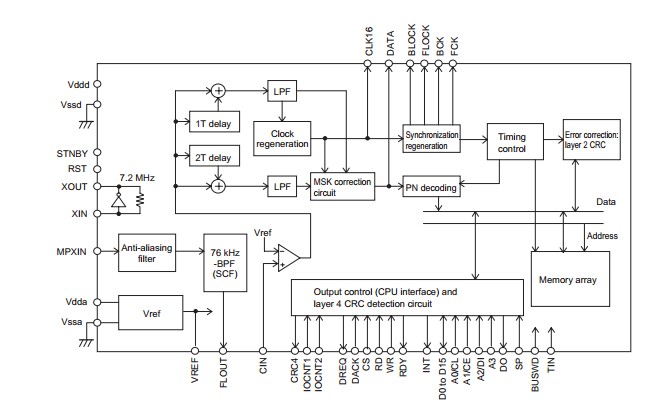

Diagrams
