Product Summary

 High-Performance Static CMOS Technology
? 25-ns Instruction Cycle Time (40 MHz)
? 40-MIPS Performance
? Low-Power 3.3-V Design
 Based on TMS320C2xx DSP CPU Core
? Code-Compatible With F243/F241/C242
? Instruction Set and Module Compatible
With F240/C240
 Flash (LF) and ROM (LC) Device Options
? LF240xA: LF2407A, LF2406A,
LF2403A, LF2402A
? LC240xA: LC2406A, LC2404A,
LC2403A, LC2402A
 On-Chip Memory
? Up to 32K Words x 16 Bits of Flash
EEPROM (4 Sectors) or ROM
? Programmable “Code-Security” Feature
for the On-Chip Flash/ROM
? Up to 2.5K Words x 16 Bits of
Data/Program RAM
? 544 Words of Dual-Access RAM
? Up to 2K Words of Single-Access RAM
 Boot ROM (LF240xA Devices)
? SCI/SPI Bootloader
 Up to Two Event-Manager (EV) Modules
(EVA and EVB), Each Includes:
? Two 16-Bit General-Purpose Timers
? Eight 16-Bit Pulse-Width Modulation
(PWM) Channels Which Enable:
? Three-Phase Inverter Control
? Center- or Edge-Alignment of PWM
Channels
? Emergency PWM Channel Shutdown
With External PDPINTx Pin
? Programmable Deadband (Deadtime)
Prevents Shoot-Through Faults
? Three Capture Units for Time-Stamping
of External Events
? Input Qualifier for Select Pins
? On-Chip Position Encoder Interface
Circuitry
? Synchronized A-to-D Conversion
? Designed for AC Induction, BLDC,
Switched Reluctance, and Stepper Motor
Control
? Applicable for Multiple Motor and/or
Converter Control

Parametrics

Jeff Jia

Sales Manager
GUI GUANG INTERNATIONAL TRADE LIMITED
www.ggichk.com
E-mail:jeff@ggichk.com
Tel:0086-15816677110

Fax:00852-35902333

Features

 External Memory Interface (LF2407A)
? 192K Words x 16 Bits of Total Memory:
64K Program, 64K Data, 64K I/O
 Watchdog (WD) Timer Module
 10-Bit Analog-to-Digital Converter (ADC)
? 8 or 16 Multiplexed Input Channels
? 500-ns MIN Conversion Time
? Selectable Twin 8-State Sequencers
Triggered by Two Event Managers
 Controller Area Network (CAN) 2.0B Module
(LF2407A, 2406A, 2403A)
 Serial Communications Interface (SCI)
 16-Bit Serial Peripheral Interface (SPI)
(LF2407A, 2406A, LC2404A, 2403A)
 Phase-Locked-Loop (PLL)-Based Clock
Generation
 Up to 40 Individually Programmable,
Multiplexed General-Purpose Input/Output
(GPIO) Pins
 Up to Five External Interrupts (Power Drive

Protection, Reset, Two Maskable Interrupts)

Power Management:
? Three Power-Down Modes
? Ability to Power Down Each Peripheral
Independently
 Real-Time JTAG-Compliant Scan-Based
Emulation, IEEE Standard 1149.1? (JTAG)
 Development Tools Include:
? Texas Instruments (TI) ANSI C Compiler,
Assembler/Linker, and Code Composer
Studio? Debugger
? Evaluation Modules
? Scan-Based Self-Emulation (XDS510?)
? Broad Third-Party Digital Motor Control
Support
 Package Options
? 144-Pin LQFP PGE (LF2407A)
? 100-Pin LQFP PZ (2406A, LC2404A)
? 64-Pin TQFP PAG (LF2403A, LC2403A,
LC2402A)
? 64-Pin QFP PG (2402A)

Extended Temperature Options (A and S)
? A: ? 40°C to 85°C
? S: ? 40°C to 125°C

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

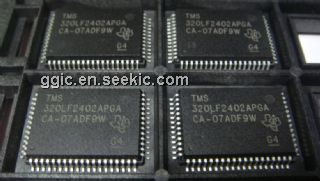

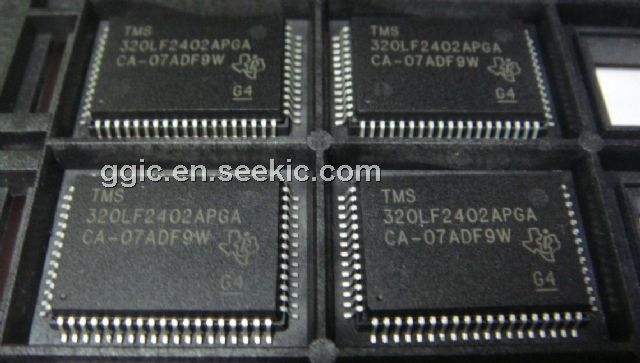

TMS320LF2402APGA
TMS320LF2402APGA

Texas Instruments

Digital Signal Processors & Controllers (DSP, DSC) 16-Bit Fixed-Pt DSP with Flash

Data Sheet

0-1: $8.10
1-25: $6.89
25-100: $6.40
100-250: $5.87
TMS320LF2402APGAR
TMS320LF2402APGAR

Texas Instruments

Digital Signal Processors & Controllers (DSP, DSC) 18-Bit Univ Bus Drv With 3-State Outputs

Data Sheet

0-300: $5.40
300-500: $5.33
500-1000: $5.26
